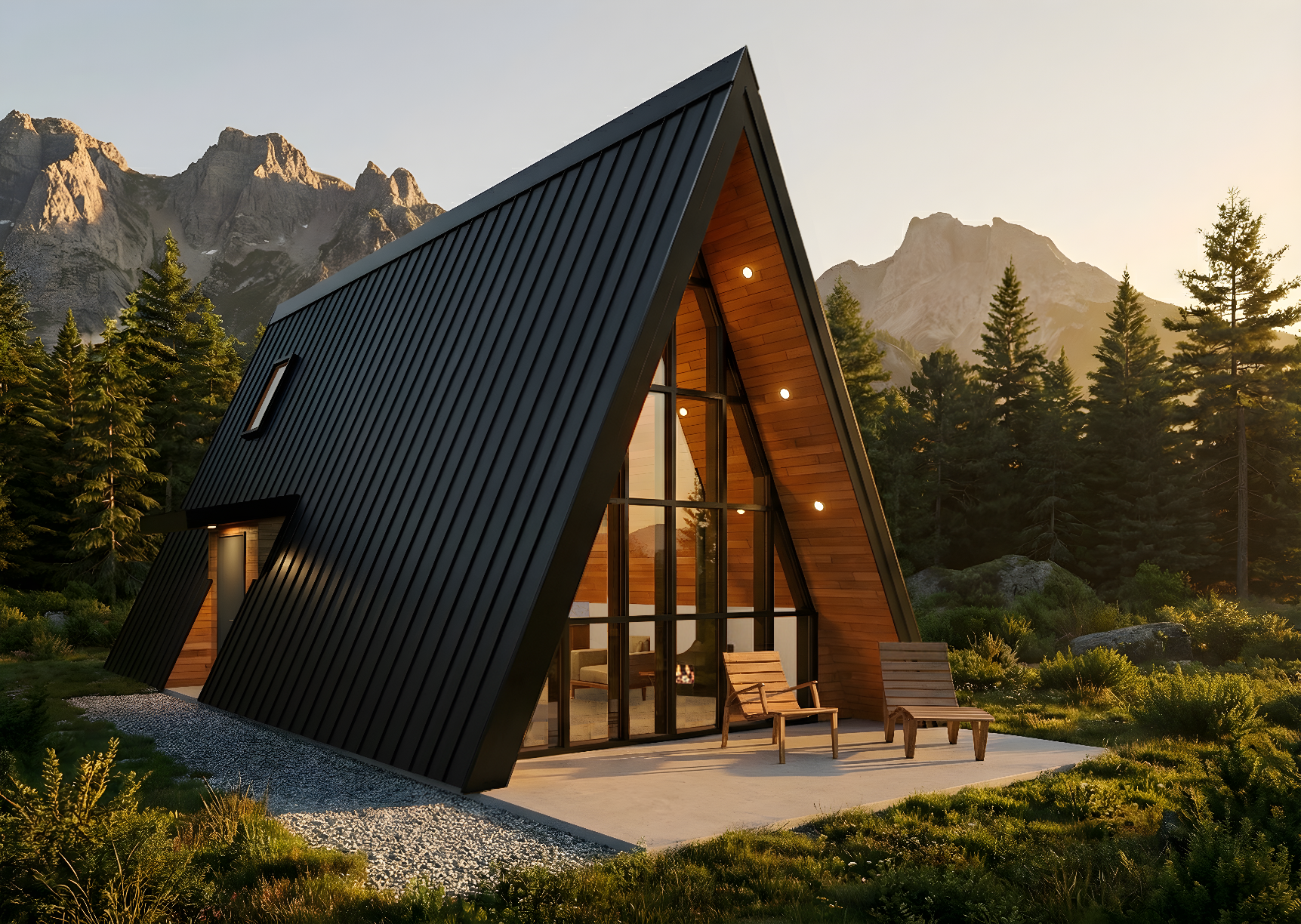

A-frame with sleeping loft and bedroom
iconic architecture for iconic adventure.

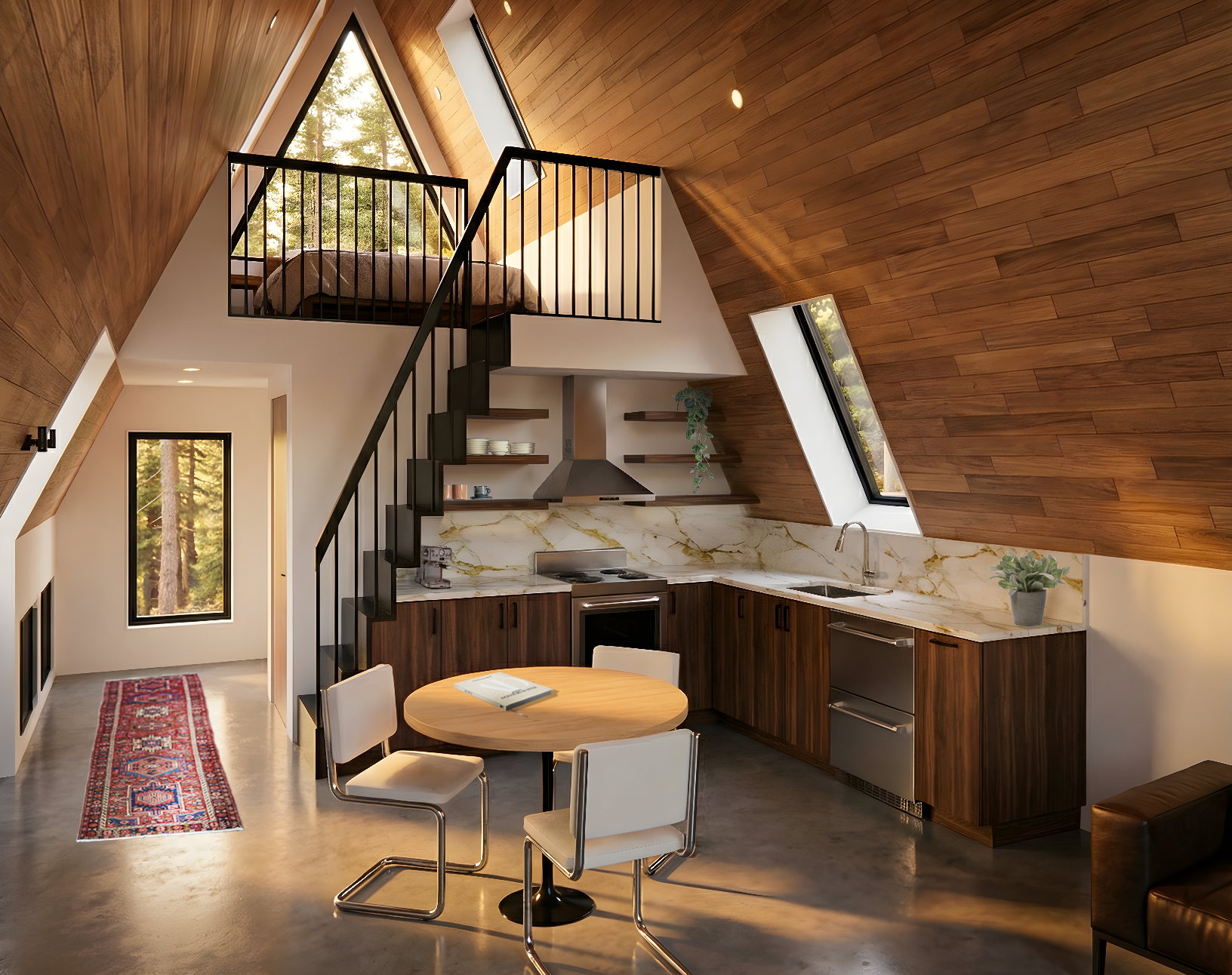

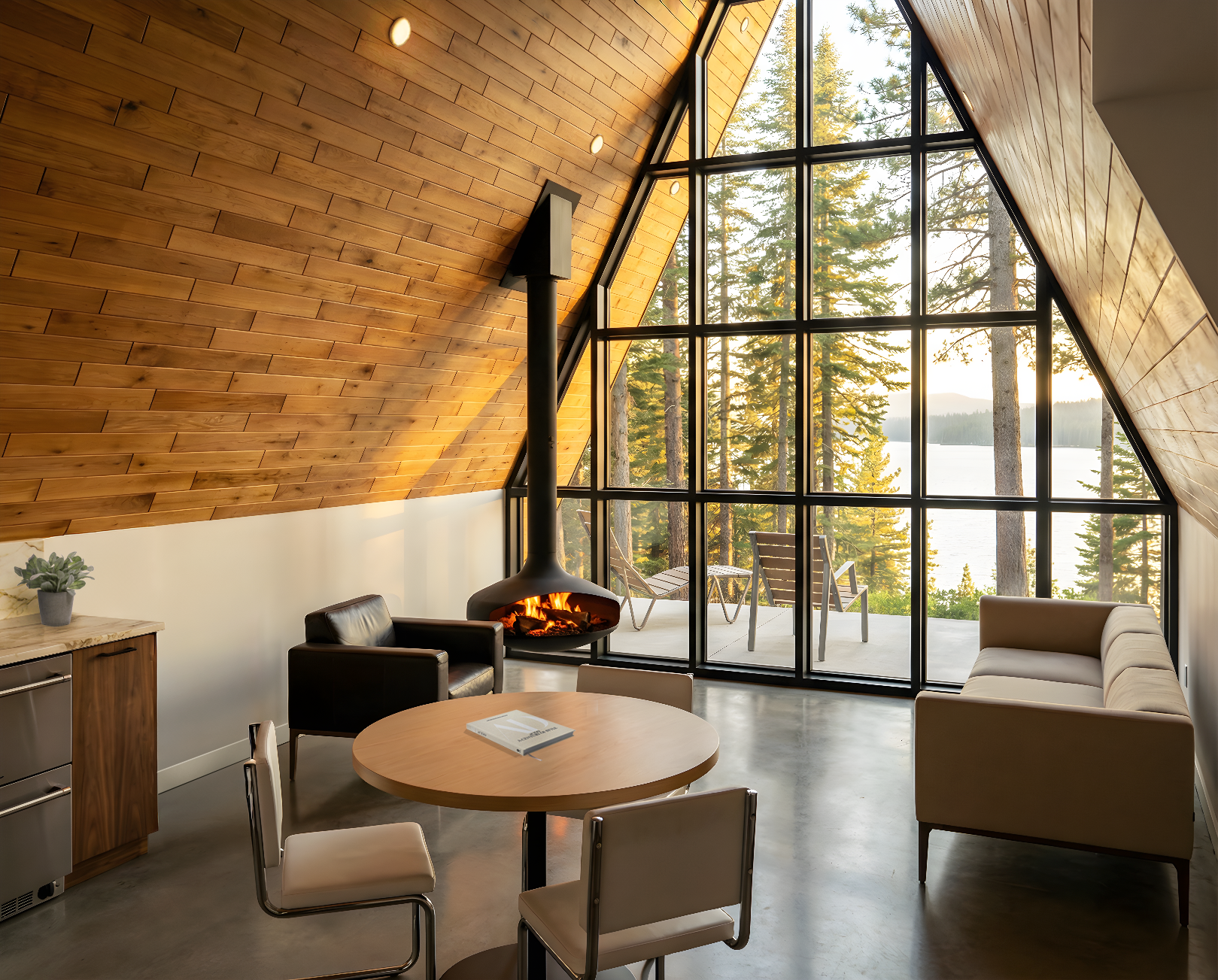

This A-Frame with extended sleeping space is perfect for group or small family getaway. The main architectural form is maintained while providing additional roof lines for increased interior space. Privacy is provided through a main floor bedroom. Scenic views from large windows in the main space creates a bright, airy experience at the main space and loft. The bedroom provides multiple facades with windows providing new views and moments for discovery. The bathroom maintains concealed lines of vision for privacy from the main living space while still maintaining the connection to the outdoors.
Program: 630 square feet
Living space
Kitchen space
Dining space
Enclosed toilet room
Bath space
Sleeping loft
Bedroom
Outdoor patio
Storage space
Structural type is slab on grade, an alternate option for a crawl space is coming soon!
*Square footage is an approximate and based off of what BuilderBode deems usable for the occupant, not to the extents of the footprint.
overview
-
Quality of design and documentation integrity is BuilderBode’s top priority. We worry about this so you don’t have to. The architectural drawings you purchase for license are generated by a registered architect and delivered to you in PDF format.
The PDF includes:
Floor & ceiling plans
Exterior & interior elevations
Exterior & interior views
Building & wall sections
International Residential Code graphics
40+ details
The architectural drawings do not provide structural plans or stamping.
-
Build with confidence knowing that the architectural drawing set meets the 2024 International Residential Code sleeping loft height requirements.
-
Niche building material and fixture suggestions are provided with your purchase. This will help with bidding, estimating, and maintaining a high quality A-frame.
-
A 1-hour architect consultation call is provided with each license purchased. An architect will walk you through the architectural drawing set to provide you guidance and answer your questions.
what’s included
free 15 minute discovery call to learn more
A-Frame architectural drawing set for $1,900

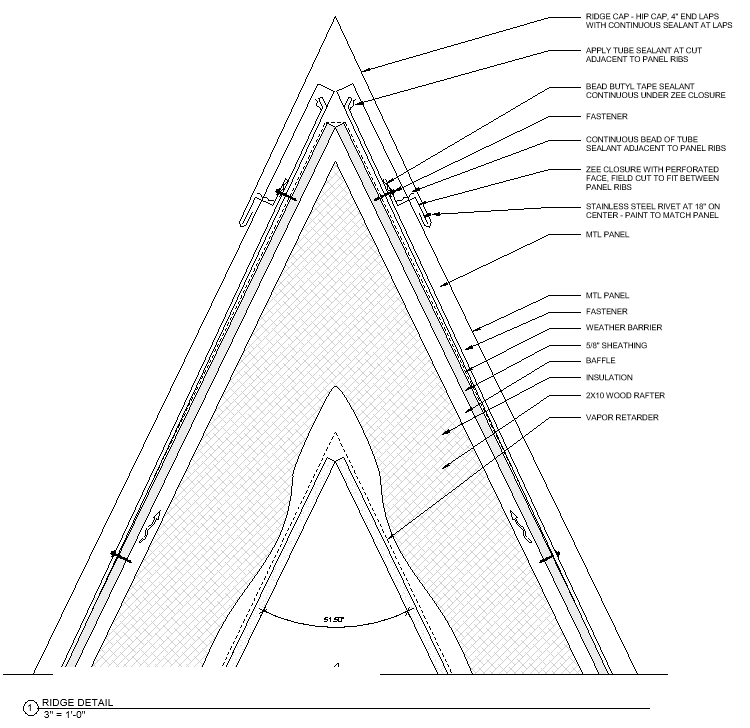

sample details
