A-frame with sleeping loft
iconic architecture for iconic adventure.
This A-Frame blends iconic charm with practical appeal. Its steep roof efficiently sheds snow and rain, while simultaneously providing wide-open interior space. The design plays up architectural ideology of compact space for intimate, cozy rooms, and expansive space for active rooms. Simple construction means lower maintenance. Scenic views from large windows create bright, airy spaces that invite the natural environment into the interior space.
Program: 500 square feet*
Living space
Kitchen space
Dining space
Enclosed toilet room
Bath space
Sleeping loft
Outdoor patio
Storage space
Structural type is slab on grade, an alternate option for a crawl space is coming soon!
*Square footage is an approximate and based off of what BuilderBode deems usable for the occupant, not to the extents of the footprint.
overview
-
Quality of design and documentation integrity is BuilderBode’s top priority. We worry about this so you don’t have to. The architectural drawings you purchase for license are generated by a registered architect and delivered to you in PDF format.
The PDF includes:
Floor & ceiling plans
Exterior & interior elevations
Exterior & interior views
Building & wall sections
International Residential Code graphics
30+ details
The architectural drawings do not provide structural plans or stamping.
-
Build with confidence knowing that the architectural drawing set meets the 2024 International Residential Code sleeping loft height requirements.
-
Niche building material and fixture suggestions are provided with your purchase. This will help with bidding, estimating, and maintaining a high quality A-frame.
-
A 1-hour architect consultation call is provided with each license purchased. An architect will walk you through the architectural drawing set to provide you guidance and answer your questions.
what’s included
free 15 minute discovery call to learn more
A-Frame architectural drawing set for $1,700

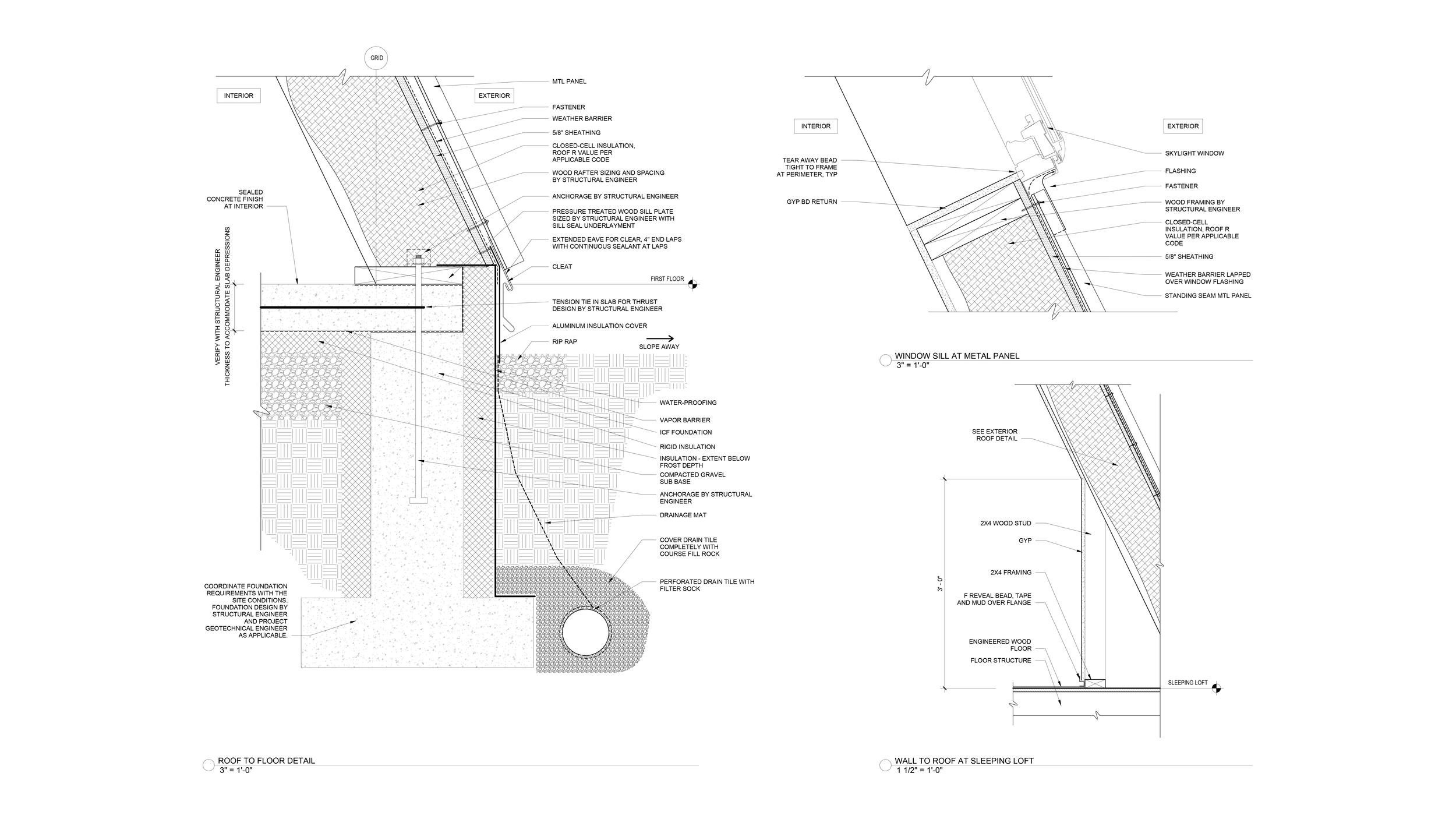

sample details
